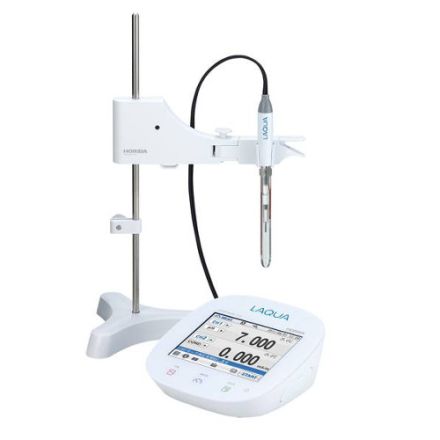

Horiba F-73 Ion, pH, ORP 2 Channel Laboratory Bench Meter w/ Touch Screen

Features:

• Measurement of pH, Selective Ion and Oxidation Reduction Potential
• Color display and navigation function for enhanced user friendliness
• Two channel meter increases measurement volume and versatility
• Switch between digital real time graphs or analogue displays during measurement with just the flick of a finger
• Information can be sent to a PC through compact flash feature
• RS232C Printer Output is built-in
• Custom LCD Display
• Electronic record, audit trail and electronic signatures are security function features

The Horiba F-73 meter measures the pH, selective Ion and ORP of samples, providing a great indication of overall water quality. This stationary meter features a stable testing arm that can be fitted with a number of different probes and sensors depending on the testing circumstance.

The color LCD screen allows the user to clearly see the pH, Ion and ORP values in large, bold numbering. The Horiba F-73 meter has an innovative navigation system which makes this meter extremely user friendly.

The F-73 does not include any probes so the user can choose from a list of specialized electrodes to best fit the testing circumstance.

The full list of pH electrodes can be found here.

The optional ORP electrode can be found here.

The complete list of Ion electrodes can be found here.

Choosing the right lab meter:

Horiba F-71: Standard pH meter with custom LCD display

Horiba F-72: Color LCD Display with navigation function

Horiba F-73: Two channel meter with pH, ORP and ISE measurement, color LCD display with navigation feature

Horiba F-74BW: Economical, Two channel pH, ORP, conductivity, salinity, resistivity, and TDS meter with custom LCD display

Horiba F-74: Two channel meter with pH, ORP, conductivity, salinity, resistivity, and TDS measurement. Color LCD display with navigation feature

Horiba DS-71: Standard conductivity meter with custom LCD display

Horiba DS-72: Enhanced conductivity meter with color LCD and navigation function

Specifications:

• Measurement Method (pH): Glass electrode method
• Measurement Method (Ion): Ion electrode method
• Measurement Range (pH): pH 0.000 ~ 14.000 (Display Range: pH -2.000 to 20.000) Resolution: 0.001pH
• Measurement Range (mV(ORP)): ±1999.9 mV Resolution: 0.1mV
• Measurement Range (Ion): 0.00 μg/L～999 g/L (mol/L) Resolution: Valid numbers 3 digits
• Temperature Range: 0.0 to 100.0°C Resolution: 0.1°C
• Repeatability (pH): ±0.005 pH±1 digit
• Repeatability (mV(ORP)): ±0.1 mV±1 digit
• Repeatability (Ion): ±0.5% ±1 digit
• Repeatability (°C): ±0.1℃±1 digit
• Power Supply: AC adaptor 100 ～ 240 V 50/60 Hz
• Mass: Approximately 500g

Unit Ship Weight: 4 lbs
