Agtec Geocell Ground Grid Paver – 2 Inch (8.4ft x 27.4ft)

Rating:

95% of 100

4 Reviews Add Your Review

$89.99

In stock

SKU

AGT-GS50

Agtec Geocell can be filled with base layers such as gravel, sand, rock and soil to keep the material in place and greatly increase the strength of the base layer. Cells are 2 inches deep. Covers 230 sq.ft. 10 Year warranty. For home, farm, and industrial use.

Buy 10 for $80.99 each and save 10%
Buy 50 for $71.99 each and save 20%

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Agtec Geocell Ground Grid Paver - 2in

(8.4ft x 27.4ft x 2in)

Features:

Paver size: 8.4' x 27.4' x 2"
2 inch depth
Covers appoximately 230 sq.ft.
Cell size : 12.6” x 11.3” (320mm x 287mm)
Made of Black, UV Stabilized HDPE
1.5+/-0.1mm rhomboidal indentation texture to keep fill in place.
Perforated cell walls for water drainage
High tensile strength <710N/10CM (160 lbf)
Saves money by greatly reducing the amount of fill needed to form a strong base
Great for light duty traffic areas and foot traffic
Controls and holds mulch in place on banks
We highly recommend a woven or non-woven geotextile beneath the geocell
10 Year Warranty

Note: It is important for installations with traffic to use compacting gravel as fill, otherwise there can be a "quicksand effect". We highly recommend compacting 3/8" gravel and not pea gravel or any rounded fill.

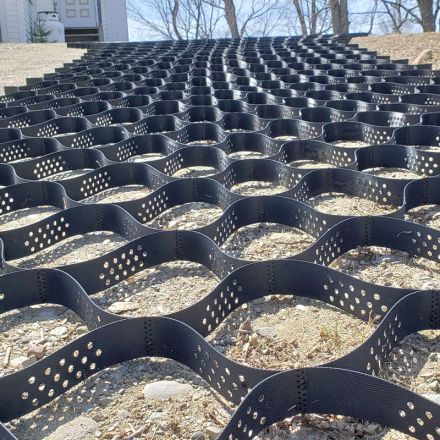

The Agtec Geocell provides load support and stability to base layers of gravel, rock, soil or sand. It greatly improves a layer's lateral strength and prevents fill from shifting or being pushed sideways. The increase in strength allows for a decrease in the amount of material needed to form a solid base and saves users time, money, and resources.

Our 2" geocell is used for light traffic areas or areas such as foot traffic and where a 4" base of gravel or fill material is not possible.

The Geocell greatly reduces erosion from weather and heavy or repetitive traffic. The perforation pattern through each cell and weld allows water to drain freely without washing out the material. The textured surface provides additional material retention. It is ideal for use in the construction of slopes and embankments prone to eroding, as well as driveways, roads, parking lots, playgrounds, trails and much more.

We highly recommend installing a geotextile fabric beneath the grids to provide additional separation, stability, reinforcement and weed control, and to help prevent sinking over time. Our 3.2oz woven geotextile is very strong, better at stopping weeds, slow down water flow to prevent erosion below and are very cost effective. The Non-woven geotextile also offers great reinforcement but also allows much faster water flow through the fabric and is better at preventing any sediment passing through.

These Geocell’s are carefully manufactured under a quality management system that is ISO-9001:2008 CE certified.

Unit ship weight: 25 lbs

Save

More Information

Installation:

Prepare the area by removing old soil, vegetation and debris.
Put a sub-base layer if necessary and grade as necessary.
Pin down one of our 3.2oz woven or 3oz-4.5oz non-woven geotextile fabrics for separation and stability
Stake out the Geocell's using rebar, stakes or large anchor pins.
Zip-tie, bolt or use pneumatic plier stapler to fasten multiple geocells together. If necessary cut Geocell ahead of time with a hand saw or recopricating saw
For a road or driveway fill the geocell with approximately 5" of 3/8" or 3/4" compacting gravel (not pea gravel, drain gravel or anything rounded) and rake level (1" excess above geocell). For erosion control on embankments without traffic, rocks sand, mulch and other material can be used
You may need to top up the gravel or other material after settling. Generously wetting the area and using a compactor is a highly recommended step to reduce settling after installation.
Remove any protruding rebars after installation.

Choosing the correct gravel:

It is extremely important to use compacting gravel as opposed to rounded gravel, on installations where traffic will be using the base, because there can be a "quicksand effect" that pushes the geocell up and out of the ground. Some terms that indicate compacting gravel are: crushed rock, crushed limestone, crushed stone, crusher run, fines, stone dust, aggregate, road base, paver base and decomposed granite (mixed with sand or stone dust). Ideally, gravel should be 3/8" but 3/4" would also work. Check with your supplier that the gravel you are using will compact and is not rounded such as pea gravel or drainage gravel.

10 Year Limited Warranty

Agtec LLC warrants each Geocell section to be free from defects in materials and workmanship at the time of manufacture. Agtec LLC's exclusive liability under this warranty or otherwise will be to furnish without charge any section which proves to be defective under normal use and service during the 10-year period which begins on the date of shipment. Agtec LLC reserves the right to inspect any allegedly defective section in order to verify the defect and ascertain its cause.

This warranty does not cover defects attributable to causes or occurrences beyond Agtec LLC control and unrelated to the manufacturing process, including, but not limited to, abuse, misuse, mishandling, neglect, improper storage, improper installation, improper alteration or improper application.

AGTEC LLC MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, IN CONNECTION WITH THE GEOCELL SYSTEM. IN NO EVENT SHALL AGTEC LLC BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR FOR ANY OTHER REASON, INCLUDING NEGLIGENCE, IN CONNECTION WITH THE GEOCELL SYSTEM.

Specifications
