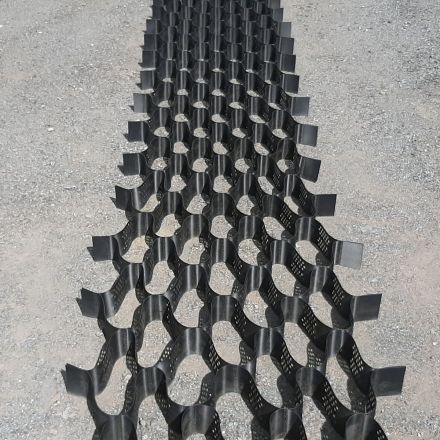

Agtec Geocell Ground Grid Paver – 4 Inch - Narrow (4.2ft x 27.4ft)
The Agtec Geocell is a load support and erosion control product used to provide strength, stability and erosion control to base layers of soil, sand, gravel and rock. Cells are 4" deep. Covers 115 sq.ft. The 4 foot wide Geocell is ideal for paths and walkways.
- Buy 10 for $89.99 each and save 10%
- Buy 50 for $79.99 each and save 20%
Agtec Geocell Ground Grid Paver - 4 Inch - Narrow (4.2ft x 27.4ft)
Features:
- Covers approx. 115 sq.ft.
- 4.2' wide version is ideal for walkways or narrow areas.
- Paver Size: 4.2 x 27.4'
- Cell size : 12.6” x 11.3” (320mm x 287mm)
- Made of Black HDPE
- UV stabilized to increase the life of the product
- 1.5+/-0.1mm rhomboidal indentation texture to keep fill in place.
- Perforated cells allow water to easily filter through
- High tensile strength > 1420N/10CM (320 lbf)
- Saves money by greatly reducing the amount of fill needed to form a strong base
- Perfect for constructing, driveways, parking lots, roads, trails, embankments and much more
- For home, farm, and industrial applications
- 10 Year Warranty
Note: It is important for installations with traffic to use compacting gravel as fill, otherwise there can be a "quicksand effect". We highly recommend compacting 3/8" gravel and not pea gravel or any rounded fill.
The Agtec Geocell is a load support and erosion control product used to provide strength, stability and erosion control to base layers of soil, sand, gravel and rock. When filled with a suitable aggregate, the Geocell provides a substantial lateral strength and retention that prevents the material from shifting sideways and eroding from heavy or repetitive traffic. The Geocell helps spread any applied weight over a greater area, and significantly reduces weather erosion.
The material is perfect for construction of driveways, road, and trails. It is ideal for use on slopes and embankments to prevent erosion and to keep material in place.
The Agtec Geocell saves time and money by reducing the amount of material needed to form a solid base layer as well as the time and man-power it takes to spread it. The structural coefficient of a 4” layer of sandy soil is 5 x greater when used with Geocell and has an equivalent structural coefficient of 10” of crushed stone and 12.7” of sandy gravel.
Geocell features a very high tensile strength >1420N/10CM (320 lbf) to withstand a large amount of lateral force. The rhomboidal indentation texture (1.5+/-0.1mm) creates friction and help to keep fill in place. The Geocell also has a perforation pattern to allow water to move freely through the product without washing out the material, greatly increasing the structural integrity of the ground.
These Geocell’s are carefully manufactured under a quality management system that is ISO-9001:2008 CE certified.
Installation:
- Prepare the area by removing old soil, vegetation and debris.
- Put a sub-base layer if necessary and grade as necessary.
- Pin down one of our drainage fabrics or ground covers if necessary for separation and stability.
- Stake out the Geocell's using rebar, stakes or large anchor pins. If necessary cut Geocell ahead of time with a hand saw (recipricating saw works great).
- Fill the Geocell with your soil, sand, gravel or rock material and rake level.
Unit ship weight: 25 lbs
Installation:
- Prepare the area by removing old soil, vegetation and debris.
- Put a sub-base layer if necessary and grade as necessary.
- Pin down one of our drainage fabrics or ground covers if necessary for separation and stability
- Stake out the Geocell's using rebar, stakes or large anchor pins.
- Zip-tie, bolt or use pneumatic plier stapler to fasten multiple geocells together. If necessary cut Geocell ahead of time with a hand saw or recopricating saw
- For a road or driveway fill the geocell with approximately 5" of 3/8" or 3/4" compacting gravel (not pea gravel, drain gravel or anything rounded) and rake level (1" excess above geocell). For erosion control on embankments without traffic, rocks sand, mulch and other material can be used
- You may need to top up the gravel or other material after settling. Generously wetting the area and using a compactor is a highly recommended step to reduce settling after installation.
- Remove any protruding rebars after installation.
Choosing the correct gravel:
10 Year Limited Warranty
Agtec LLC warrants each Geocell section to be free from defects in materials and workmanship at the time of manufacture. Agtec LLC's exclusive liability under this warranty or otherwise will be to furnish without charge any section which proves to be defective under normal use and service during the 10-year period which begins on the date of shipment. Agtec LLC reserves the right to inspect any allegedly defective section in order to verify the defect and ascertain its cause.
This warranty does not cover defects attributable to causes or occurrences beyond Agtec LLC control and unrelated to the manufacturing process, including, but not limited to, abuse, misuse, mishandling, neglect, improper storage, improper installation, improper alteration or improper application.
AGTEC LLC MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, WRITTEN OR ORAL, INCLUDING, BUT NOT LIMITED TO, ANY WARRANTIES OR MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, IN CONNECTION WITH THE GEOCELL SYSTEM. IN NO EVENT SHALL AGTEC LLC BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR FOR ANY OTHER REASON, INCLUDING NEGLIGENCE, IN CONNECTION WITH THE GEOCELL SYSTEM.
Specifications:
- Paver size: 4.2' x 27.4' x 2"
- Covers appoximately 115 sq.ft.
- Cell size : 12.6” x 11.3” (320mm x 287mm)
- Made of Black, UV Stabilized HDPE
- 1.5+/-0.1mm rhomboidal indentation texture to keep fill in place.
- Perforated cell walls for water drainage
- High tensile strength <710N/10CM (160 lbf) .
