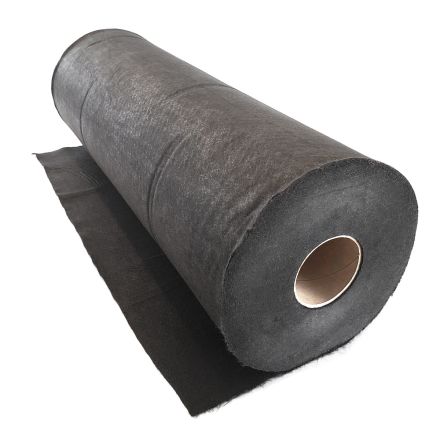

AgTec Non-Woven 4.5 oz Drainage and Separation Geotextile (3ft x 300ft)
This soft, black 4.5oz polypropylene fabric is ideal for use in drain installations and landscaping applications where drainage, separation or ground reinforcement is needed. This fabric allows water to pass through, while holding soil and aggregate in place. Resistant to rot, chemicals, and UV degradation.
AgTec Non-Woven 4.5 oz Drainage and Separation Geotextile (3ft x 300ft)
Features:
- Formed from a non-woven network of polypropylene fibers
- Holds soil aggregate in place while allowing water to drain
- Ideal for French drains, trench drains and blanket drains
- Ideal for erosion control
- Durable
- Resistant to UV degradation
- Resistant to rot and biological degradation
- Resistant to chemicals
- High tensile strength
- Flow rate: 120 gpm/ft2
This non-woven polypropylene filter fabric is used for a wide range of landscape and hardscape applications. The high strength 4.5oz fabric offers excellent drainage speed without compromising strength or filtration properties.
This geotextile provides excellent sub-layer separation and reinforcement. It can be used under roadways, walkways, gravel driveways, geocell installations, patios to reinforce the ground and to keep layers in place.
Used for subsurface drainage and filtration applications to allow water to pass through but keeping particles in place. Extends the life and usefulness of French drains, trench drains and blanket drains. Perfect for use as pipe wrap. This fabric offers excellent filtration to help prevent dirt and aggregate from entering and clogging your drains.
Also used in a range of landscaping applications to prevent weeds, reduce erosion and to separate sub-layers. Used with raised beds, flower beds, mulch and rock installations, slope reinforcement and even as an under-liner beneath your ponds to help prevent puncturing.
Applications:
- Sub-layer separation and reinforcement
- Roads
- Driveways
- Walkways
- Gravel
- French drains and drainage fields
- Weed control
- Erosion control
- Landscape applications such as beneath flower beds, raised beds, mulch,
- Hardscape applications:
- Gravel driveways, (use beneath our Geocells),
- Roadways
- Paved areas
- Patios, retaining walls
- Pond under liner
- Many other uses as an industrial grade felt.
Ship weight: 28.5 lbs
Specifications:
|
|
TEST METHOD |
MARV ENGLISH |
MARV METRIC |
|
Tensile Strength (Grab) |
ASTM D4632 |
120 x 120 lbs |
534 x 534 N |
|
Elongation (Grab) |
ASTM D4632 |
50% x 50% |
50% x 50% |
|
Trapezoidal Tear Strength |
ASTM D4533 |
50 x 50 lbs |
222 x 222 N |
|
CBR Puncture |
ASTM D6241 |
335 lbs |
1,490 |
|
UV Resistance (500 hrs) |
ASTM D4355 |
70% |
70% |
|
Apparent Opening Size* |
ASTM D4751 |
70 US Std. Sieve |
0.212 mm |
|
Permittivity |
ASTM D4491 |
1.7 sec-1 |
1.7 sec-1 |
|
Water Flow Rate |
ASTM D4491 |
120 gpm/ft2 |
4,889 lpm/m2 |
| Cloth Length | 300 Feet |
|---|
