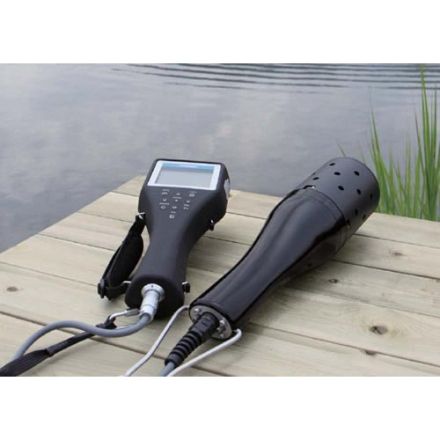

Horiba 9 Parameter Water Quality Meter – U-52-2

$3,609.99
In stock
SKU
3200164501

This multiparameter meter measures the top water quality variables with a single probe while displaying all information simultaneously on the LCD screen. 2 meter cable.

Horiba 9 Parameter Water Quality Meter – U-52-2

Simultaneously measure and display top water quality parameters with one meter

Features:

  • Easy to read LCD display
  • 2 meter cable
  • Measures 9 water quality parameters
  • One-hand operation
  • On-screen icon displays battery power and GPS, USB and probe unit connectivity
  • Quick-connect controller (cable to control unit)
  • Shock resistant cover
  • Backlit display

Sensor Probe Unit Features:

  • Ultra-sensitive turbidity sensor
  • Minimum dissolved oxygen sensor maintenance with screw-on type membrane cap
  • Chemical resistant construction materials
  • Optional ToupH pH electrode which is difficult to break
  • Field replaceable sensors

Easy to read LCD display and easy operation

This meter displays all 9 test parameters directly on the screen for quick reference and comparison. The text size can be changed to a larger font for easy reading and the icon display information relates meter specific intel without wasting screen space. The entire unit is small and designed for one handed use, keeping the other hand free for holding the sensor. To add to the ease of use the operation instructions are displayed on screen. The added variable display contrast compensates for extreme ambient lighting conditions.

U-50 Control unit designed for field operations

The patented auto-calibration feature provides hassle free calibration of pH, dissolved oxygen, turbidity and conductivity. The sensor features a shock resistant cover that is designed for rough treatment in the field and which is easily cleaned. The cable is easily connected and disconnected with a quick-connect fitting.

Data management

The auto hold function freezes average data values on the screen to offer more time to verify or transcribe collected data. It features diagnostic functions to notify the user of errors and has an integral USB connection for data transfer to a PC. (USB cable is sold separately and includes software) Selectable measurement units allow the operator to report data without the need to convert data to desired units of measure.

GPS Compatible (U-52G/53G)

This system can be used in conjunction with the Global Positioning System (GPS) to record latitude, longitude and other location data for individual measurements. This feature is particularly useful for environmental surveys.

Testing parameters:

  • pH
  • ORP (Oxidation reduction potential)
  • Dissolved oxygen
  • Conductivity
  • Salinity
  • TDS (Total dissolved solids)
  • Seawater specific gravity
  • Temperature
  • Turbidity (LED)

Multiple sensors housed in each probe

Multiple sensors allow for the measurement of all parameters simultaneously. Improved stability of the dissolved oxygen sensor has been achieved with a new 3 electrode design for fast response and polarographic sensor for ease of maintenance. pH and ORP electrodes can be replaced individually to reduce replacement costs.

Specifications:

U-50 series Feature comparison



U-51

U-52

U-52G

U-53

U-53G

pH

    ○

    ○

    ○

   ○

    ○

Dissolved Oxygen

    ○

    ○

    ○

    ○

    ○

Conductivity

    ○

    ○

    ○

    ○

    ○

Salinity

    ○

    ○

    ○

    ○

    ○

TDS(Total Dissolved Solid)

    ○

    ○

    ○

    ○

   ○

Seawater specific gravity

    ○

    ○

    ○

    ○

    ○

Temperature

    ○

    ○

    ○

    ○

    ○

Turbidity (LED)

   —

    ○

    ○

    —

    —

Turbidity (Tangsten lamp)

   —

    —

    —

    ○

    ○

Water depth

   —

    —

    ○

    ○

    ○

ORP (Oxidation Reduction Potential)

    ○

    ○

    ○

    ○

    ○

GPS

   —

    —

    ○

    —

    ○

pH (mV)

    ○

    ○

    ○

    ○

    ○
