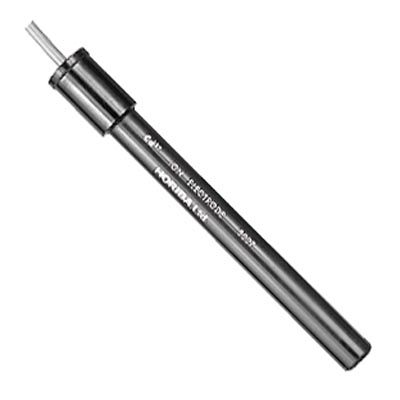

Horiba Cadmium Ion Electrode – 8007-10C
Horiba Cadmium Ion Electrode – 8007-10C
The Horiba Cadmium Ion Electrode is designed to determine the cadmium ion concentration in aqueous samples. It requires either the 2060A-10T or 2565A-10T reference electrodes to function properly. This electrode works with the majority of Horiba water testing meters and provides highly accurate results.
Horiba sensors and electrodes are among the highest quality in the world. They are made with top quality components and are designed to provide accurate, dependable results.
Specifications:
|
Measuring range |
0.1 to 11,240 mg/L Cd2+ |
|
pH range |
11 mg/L (10-4 mol/L) Cd2+ |
|
Applicable temperature range |
0 to 50℃ |
|
Response time (90%) |
Within 10 seconds |
|
Applicable reference electrode |
2060A, |
|
Selection coefficient |
Cu2+、Hg2+Ag+ = Not acceptable Pb2+ = 0.1 Fe3+ = 1 Cr3+、Fe2+ = 100 Ni2+ = 1,000 |
• The response time is the time which is required to reach 90% response when the ion concentration is gradually changed from 10-4 mol/L to 10-2 mol/L with the solution stirred.
Exception:
*1: 90% response when ion concentration is changed to 10-6 mol/L ∼ 10-2 mol/L
*2: 95% response when ion concentration is changed to 10-3 mol/L ∼ 10-1 mol/L
*3: 95% response when ion concentration is changed to 10-4 mol/L ∼ 10-2 mol/L
*4: 95% response when ion concentration is changed to 10-4 mol/L ∼ 10-1 mol/L
• The selection coefficient is a ratio of the limit concentration of coexisting ions (mol/L) to the ion concentration to be measured (mol/L); The value of 1000 means that the coexisting ions can be permitted up to 1000 times the ion measured and ''not acceptable'' means that chemical change occurs in the solid response membrane.
Note: This electrode does not work with the Horiba D-53 meter.
Unit Ship Weight: 1 lb
